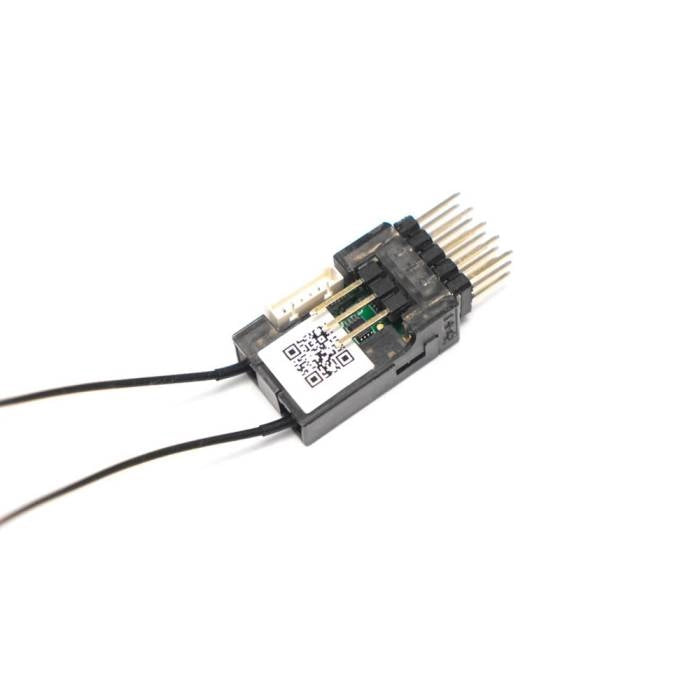

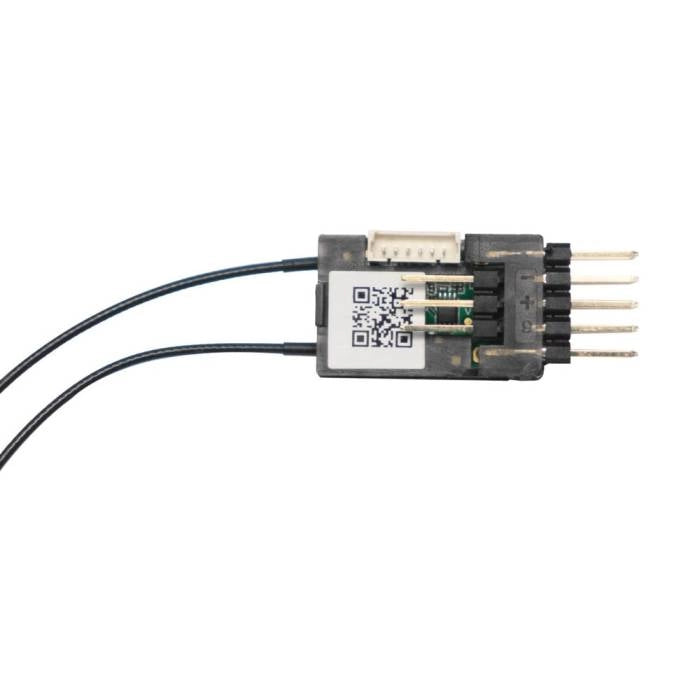

Frsky Archer Plus GR6 2.4GHz
Frsky Archer Plus GR6 2.4GHz
Receivers / Sensor

Frsky Archer Plus GR6 2.4GHz

$39.99

Quantity

Sku:

N/A

Category:

Receivers / Sensor

Tag:

Receiver ,

spo-disabled

Vendor:

Soaring lab

Type:

receiver

Frsky Archer Plus GR6 2.4GHz Frsky Archer Plus GR6 2.4GHz Frsky Archer Plus GR6 2.4GHz



The Archer Plus GR6 is ideal for glider pilots, featuring full-range signal strength, dual antennas, and a compact design for tight spaces. It supports redundant setups via its SBUS In port and pairs effortlessly with telemetry devices using FBUS protocol. An upgraded high-precision variometer ensures accurate altitude and vertical speed data with enhanced audio feedback through FrSky ACCESS. ACCESS also enables OTA firmware updates, extended range, and improved telemetry.

Features

  • Over-The-Air (OTA) Firmware Updates
  • 6 High-Precision PWM Channel Ports
  • Basic Black-Box Functionality
  • Upgraded Variometer Sensor
  • External Voltage Detection
  • Enhanced RF Performance
  • Dual Mode Support
  • Telemetry Support
  • SBUS Ports

Specifications

  • Voltage Measurement Range via AIN2 (External device): 0–35V (Battery Voltage Divider Ratio: 1:10)
  • Compatibility: FrSky 2.4GHz ACCESS / ACCST D16 capable transmitters
  • Dimensions: 33 × 15 × 9.7mm (L × W × H)
  • Antenna Connector: IPEX4
  • Weight: 4.3g
  • Operating Range: >2km (Full range) (*Range may vary based on local conditions.)
    • Operating Voltage Range: 3.5–10V
    • Operating Current: <65mA @ 5V
  • Number of Channels: 6/24 channels
    • ACCESS Mode: 6 high-precision PWM & 24 SBUS channels
    • D16 Mode: 6 high-precision PWM & 16 SBUS channels
  • Variometer Measurement Range:
    • Altimeter Range & Resolution: -700m to 10,000m & 0.1m
    • Vertical Speed Range: ±10m/s
